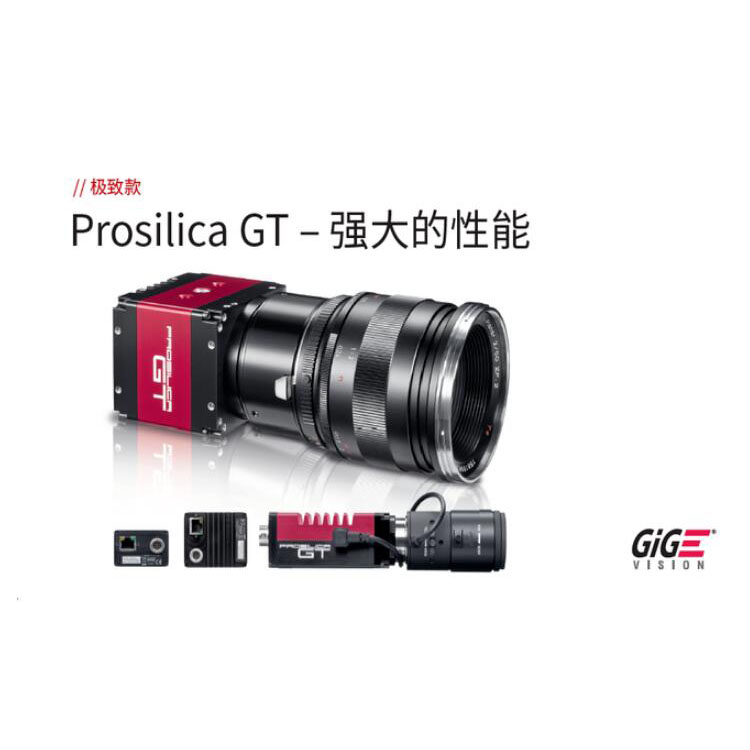

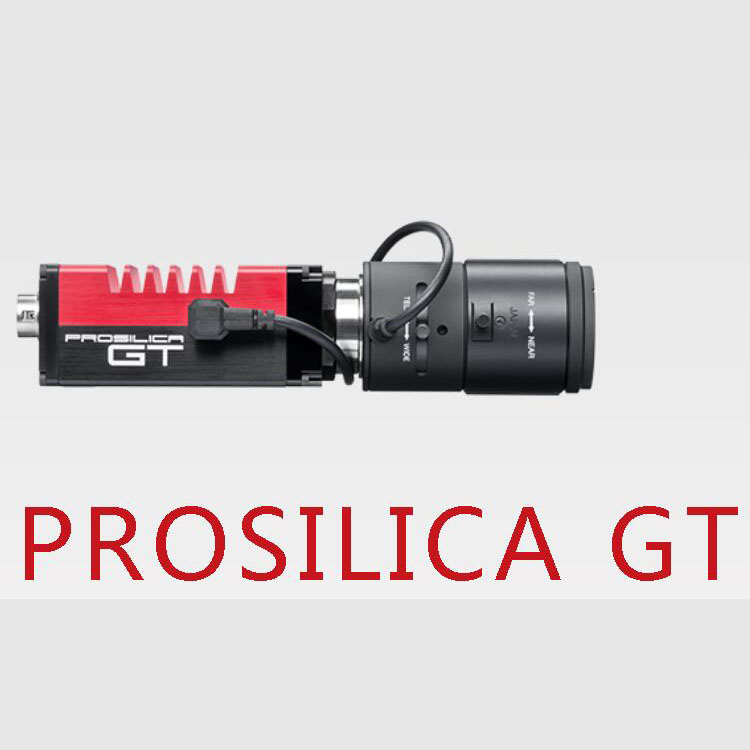

PROSILICA GT4400/c

· Monochrome (GT4400) and color (GT4400C) models

· Screw mount RJ45 Ethernet connector for secure operation in industrial environments

· Supports cable lengths up to 100 meters (CAT-5e or CAT-6)

· Trigger over Ethernet Action Commands allow for a single cable solution to reduce system costs

· Comprehensive I/O functionality for simplified system integration

接口

IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE)

分辨率

4432 (H) × 4436 (V)

传感器

Sony IMX367

传感器类型

CMOS

传感器尺寸

Type 4/3

像元尺寸

3.45 µm × 3.45 µm

Shutter mode

Global shutter

Lens mounts (available)

F-Mount, F-Mount PA, M42-Mount, M42-Mount PA, M58-Mount, M58-Mount PA, C-Mount, TFL-Mount

最大满帧帧率

6.12 fps

ADC

12 Bit

缓存 (RAM)

128 MByte

成像性能

Imaging performance data is based on the evaluation methods in the EMVA 1288 Release 3.1 standard for characterization of image sensors and cameras. Measurements are typical values for monochrome models measured at full resolution without optical filter.

在波长为529nm下，量子转换效率

64 %

暗噪声

2.3 eˉ

饱和电子数

10300 eˉ

动态范围

72 eˉ

灵敏度阈值

2.7 eˉ

输出

Bit位数

12 Bit

黑白像素格式

Mono8, Mono12Packed, Mono12

原始像素格式

BayerRG8, BayerRG12, BayerRG12Packed

通用输入输出口(GPIOs)

TTL I/Os

1 input, 2 outputs

光耦 I/Os

1 input, 2 outputs

RS232

1

工作条件/尺寸

工作温度

-20 °C to +50 °C housing (without condensation)

电源要求 (DC)

7 to 25 VDC AUX or IEEE 802.3at Type 1 PoE

功耗

External power: 5.0 W at 12 VDC | Power over Ethernet: 6.2 W

重量

372 g

尺寸 (L × W × H in mm)

96 × 66 × 53.3 (including connectors)

符合规范

CE: 2014/30/EU (EMC), 2011/65/EU, including amendment 2015/863/EU (RoHS); FCC Class A; CAN ICES-3 (A)
