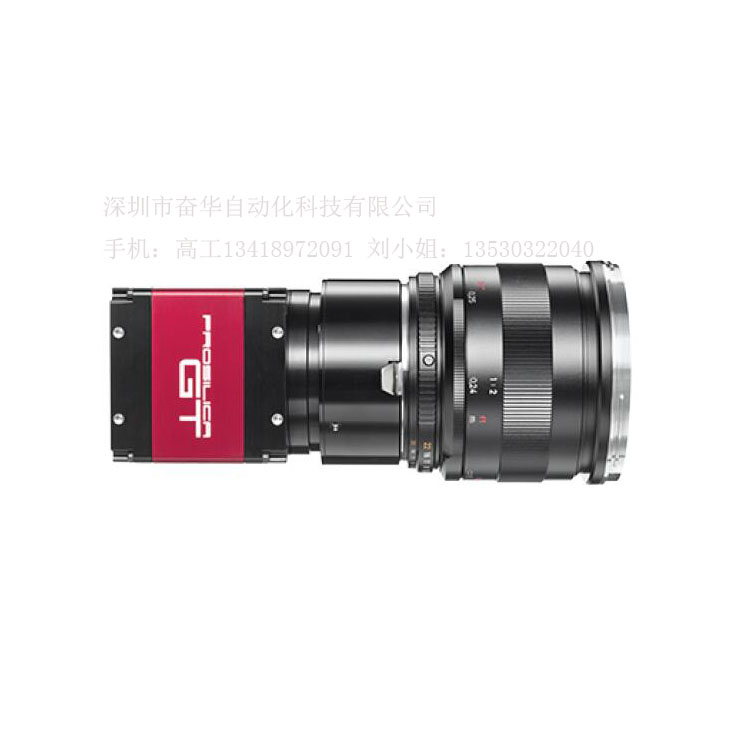

PROSILICA GT1930L/lc

· Versatile temperature range for extreme environments

· Latest Sony CMOS sensor

· PTP and PoE

· EF lens control

接口

IEEE 802.3 1000BASE-T, IEEE 802.3af (PoE)

分辨率

1936 (H) × 1216 (V)

传感器

Sony IMX174

传感器类型

CMOS

传感器尺寸

Type 1/1.2

像元尺寸

5.86 µm × 5.86 µm

Shutter mode

Global shutter

Lens mount (default)

EF-Mount

最大满帧帧率

50.8 fps

ADC

12 Bit

缓存 (RAM)

128 MByte

非易失性内存 (Flash)

1024 KByte (for selected models only)

成像性能

成像性能数据是基于欧洲机器视觉协会（EMVA）1288发布的3.1版图像传感器和像机特征描述标准中的评估方法。测量值是在没有光学滤波片的全分辨率下，测量单色模型的典型值。请联系销售或工程师了解更多信息。

在波长为529nm下，量子转换效率

69 %

暗噪声

6.0 eˉ

饱和电子数

32600 eˉ

动态范围

73.5 dB

绝对灵敏度阈值

6.9 eˉ

输出

Bit位数

12 Bit

黑白像素格式

Mono8, Mono12Packed, Mono12

原始像素格式

BayerRG8, BayerRG12, BayerRG12Packed

通用输入输出口(GPIOs)

TTL I/Os

1 input, 2 outputs

光耦 I/Os

1 input, 2 outputs

RS232

1

工作条件/尺寸

工作温度

-30 °C to +70 °C housing (without condensation)

电源要求 (DC)

7 to 25 VDC AUX or 802.3at Type 1 PoE

功耗

3.24 W at 12 VDC; 3.88 W PoE

重量

372 g

尺寸 (L × W × H in mm)

96 × 66 × 53.3 (including connectors)

符合规范

CE: 2014/30/EU (EMC), 2011/65/EU, including amendment 2015/863/EU (RoHS); FCC Class A; CAN ICES-003 Issue 4/5

· Monochrome (GT1930L) and color (GT1930LC) models

· GigE Vision interface with Power over Ethernet

· Screw mount RJ45 Ethernet connector for secure operation in industrial environments

· Supports cable lengths up to 100 meters (CAT-5e or CAT-6)

· The Sony IMX174 Exmor is a high sensitivity CMOS sensor

· Trigger over Ethernet (ToE) Action Commands allow for a single cable solution to reduce system costs

· Comprehensive I/O functionality for simplified system integration

· Planarity adjustable (PA) EF Lens Mount for electronic control of aperture and autofocus

· Easy camera mounting via standard M3 threads at all sides and 1/4-20 tripod mounting hole

· Easy software integration with Allied Vision's Vimba SDK and compatibility to the most popular third party image-processing libraries.
