Resolution
(H x V Pixels)

1280 x 1024

Sensor Type

e2v EV76C560 ACT

Progressive scan CMOS

Global shutter

Rolling shutter

The shutter mode can be set via software.

Optical Size

1/1.8"

Effective Sensor Diagonal

8.7 mm

Pixel Size (H x V)

5.3 μm x 5.3 μm

Frame Rate
(at Default Settings)

60 fps

Product Line

ace classic

Mono / Color

Color

Image Data Interface

Fast Ethernet (100 Mbit/s)

Gigabit Ethernet (1000 Mbit/s)

Pixel Formats

See Pixel Format.

Synchronization

Via hardware trigger

Via software trigger

Via free run

Exposure Time Control

Programmable via the camera API

Camera Power Requirements

Power over Ethernet (PoE) 802.3af compliant supplied via Ethernet connector

12 VDC supplied via I/O connector

≈2.6 W when using Power over Ethernet

≈2.0 W @ 12 VDC when supplied via I/O connector

I/O Lines

1 opto-coup星空（中国） input line

1 opto-coup星空（中国） output line

Lens Mount

C-mount, CS-mount

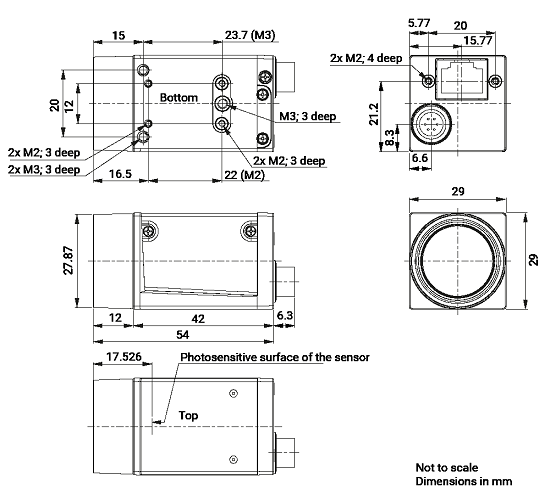

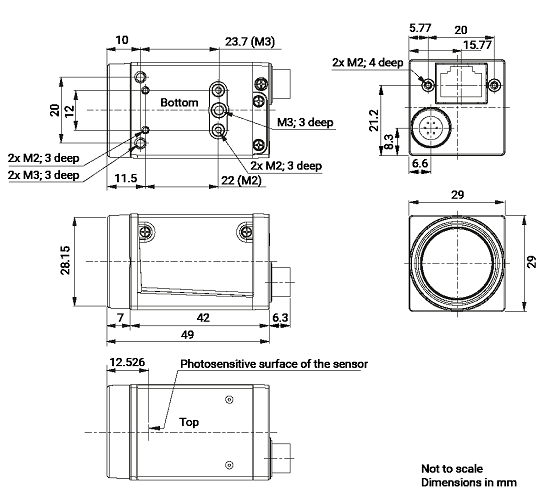

Size (L x W x H)

42.0 mm x 29 mm x 29 mm (without lens mount or connectors)

60.3 mm x 29 mm x 29 mm (with lens mount and connectors)

Weight

<90 g

Conformity

CE (includes RoHS), UL Listed, FCC, GenICam, GigE Vision, IP30, IEEE 802.3af (PoE), REACH

The EU Declaration of Conformity is available on the Basler website

Software

Basler pylon Camera Software Suite (version 4.0 or higher)

Available for Windows, Linux x86, Linux ARM, and OS X

Accessories

Cables for your camera model

Lenses for your camera model

Additional accessories for your camera model
