FWB-PCI3202A

您的当前位置： 首 页 >> 产品中心 >> 1394采集卡

FWB-PCI3202A

FWB-PCI3202A

  • 所属分类：1394采集卡

  • 型号：FWB-PCI3202A
  • 点击次数：
  • 星空平台：2020/08/13
  • 在线询价
详细介绍

1394采集卡

IOI采集卡

1394采集卡

FWB-PCI3202A价格

Introduction

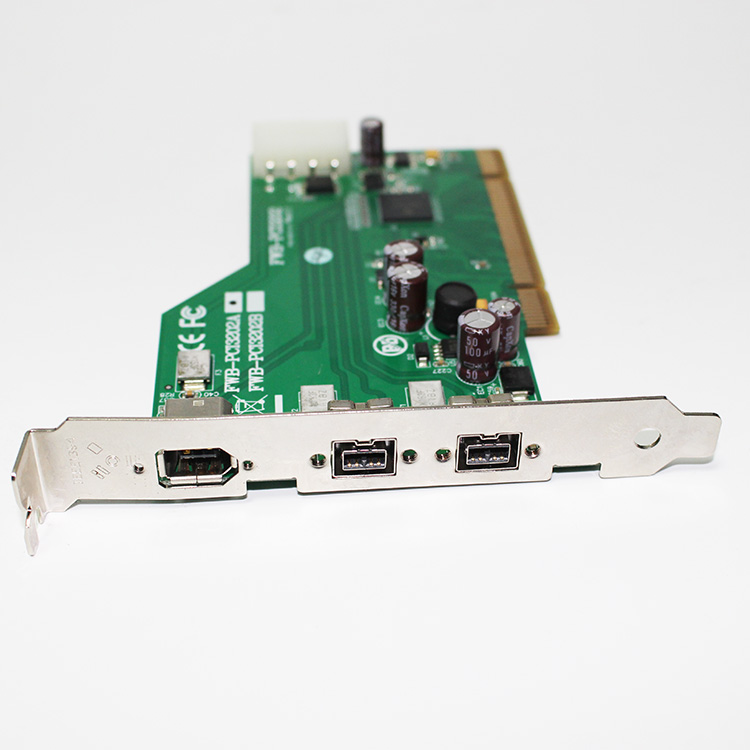

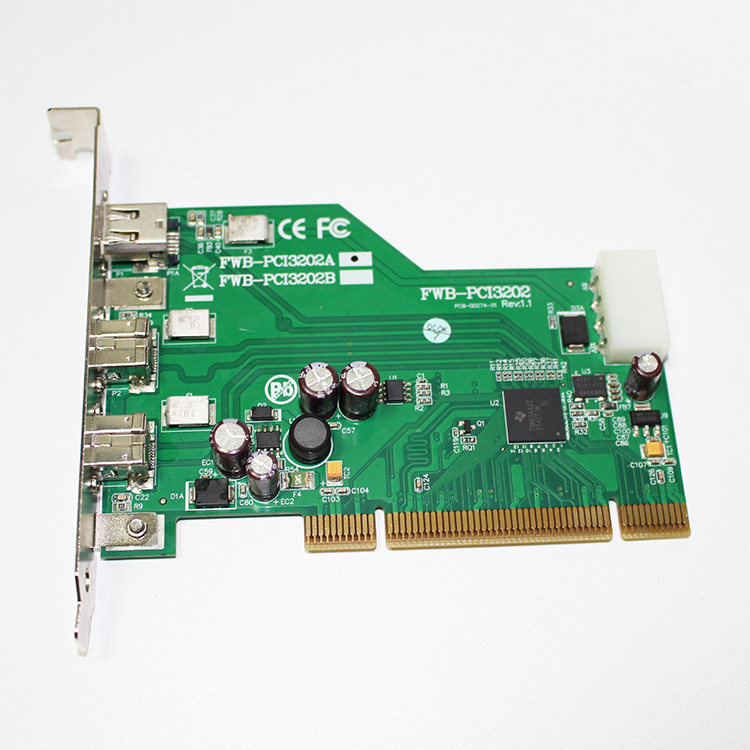

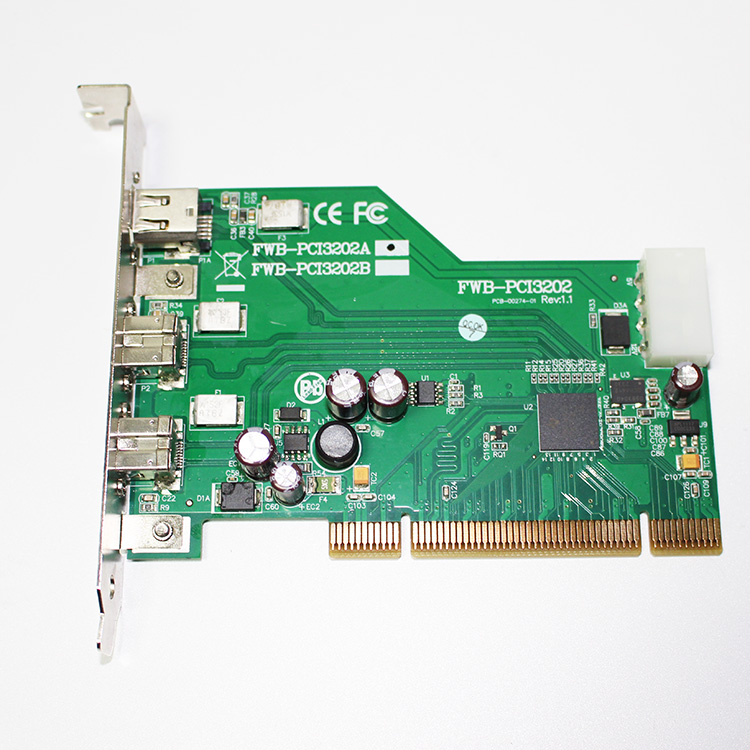

FWB-PCI3202A is a three port OHCI 1.1 Compliant FireWire 800 (IEEE-1394b) PCI Host Adapter featuring Texas Instruments OHCI 1.1 Compliant FireWire 800 (IEEE-1394b) Single Chip Host Controller.



Technical Specifications

Host Bus:· 33-MHz/32-Bit PCI Interface· 3.3-V and 5-V PCI Signaling EnvironmentIEEE 1394 Std Support:· Fully Supports Provisions of IEEE P1394b Revision 1.33+ at 1-Gigabit Signaling Rates· Fully Supports Provisions of IEEE 1394a.2000 and 1394.1995 Standard for High Performance Serial Bus· Fully Interoperable With Firewire., i.LINK., and SB1394., Implementation of IEEE Std 13941394 Bus Transfer Rate:Provides three fully backward-compatible, (IEEE Std 1394a-2000 fully compliant) Bilingual IEEE Std 1394b-2002 cable ports at S100/S200/S400/S400B/S800 megabits per second (Mbits/s).IEEE-1394 to PCI Controller· Texas Instruments TSB83AA23· PCI burst transfers and deep FIFOs to tolerate large host latency· Transmit FIFO—5K asynchronous· Transmit FIFO—2K isochronous· Receive FIFO—2K asynchronous· Receive FIFO—2K isochronousDV and DA Enhancement:· Digital Video and Audio performance enhancements.· Extended resume signaling for compatibility with legacy DV components.Power Management :D0, D1, D2, and D3 power states and PME events per the PCI Bus Power Management Interface SpecificationNumber of ports:· FWB-PCI3202A: Two External Bilingual Ports (with screw lock) + One FireWire PortBus Power Connector:Big IDE 4-pin DC Power Connector





Introduction

FWB-PCI3202B is a three port OHCI 1.1 Compliant FireWire 800 (IEEE-1394b) PCI Host Adapter featuring Texas Instruments OHCI 1.1 Compliant FireWire 800 (IEEE-1394b) Single Chip Host Controller.



Technical Specifications

Host Bus:· 33-MHz/32-Bit PCI Interface· 3.3-V and 5-V PCI Signaling EnvironmentsIEEE 1394 Std Support:· Fully Supports Provisions of IEEE P1394b Revision 1.33+ at 1-Gigabit Signaling Rates· Fully Supports Provisions of IEEE 1394a.2000 and 1394.1995 Standard for High Performance Serial Bus· Fully Interoperable With Firewire., i.LINK., and SB1394., Implementation of IEEE Std 13941394 Bus Transfer Rate:Provides three fully backward-compatible, (IEEE Std 1394a-2000 fully compliant) Bilingual IEEE Std 1394b-2002 cable ports at S100/S200/S400/S400B/S800 megabits per second (Mbits/s).IEEE-1394 to PCI Controller· Texas Instruments TSB83AA23· PCI burst transfers and deep FIFOs to tolerate large host latency· Transmit FIFO—5K asynchronous· Transmit FIFO—2K isochronous· Receive FIFO—2K asynchronous· Receive FIFO—2K isochronousDV and DA Enhancement:· Digital Video and Audio performance enhancements.· Extended resume signaling for compatibility with legacy DV components.Power Management :D0, D1, D2, and D3 power states and PME events per the PCI Bus Power Management Interface SpecificationNumber of ports:· FWB-PCI3202B: Three External Bilingual Ports (with screw lock)Bus Power Connector:Big IDE 4-pin DC Power Connector



IntroductionFWB-PCI3203 is a three port OHCI 1.1 Compliant FireWire 800 (IEEE-1394b) to PCI Host Adapter featuring Texas Instruments OHCI 1.1 Compliant FireWire 800 (IEEE-1394b) Single Chip Host Controller.



Technical SpecificationsHost Bus:· 33-MHz/32-Bit PCI Interface· 3.3-V and 5-V PCI Signaling EnvironmentsIEEE 1394 Std Support:· Fully Supports Provisions of IEEE P1394b Revision 1.33+ at 1-Gigabit Signaling Rates· Fully Supports Provisions of IEEE 1394a.2000 and 1394.1995 Standard for High Performance Serial Bus· Fully Interoperable With Firewire., i.LINK., and SB1394., Implementation of IEEE Std 13941394 Bus Transfer Rate:Provides three fully backward-compatible, (IEEE Std 1394a-2000 fully compliant) Bilingual IEEE Std 1394b-2002 cable ports at S100/S200/S400/S400B/S800 megabits per second (Mbits/s).IEEE-1394 to PCI Controller· Texas Instruments TSB83AA23· PCI burst transfers and deep FIFOs to tolerate large host latency· Transmit FIFO—5K asynchronous· Transmit FIFO—2K isochronous· Receive FIFO—2K asynchronous· Receive FIFO—2K isochronousDV and DA Enhancement:· Digital Video and Audio performance enhancements.· Extended resume signaling for compatibility with legacy DV components.Power Management :D0, D1, D2, and D3 power states and PME events per the PCI Bus Power Management Interface SpecificationNumber of ports:· FWB-PCI3203: Two External Bilingual Ports (with screw lock) + One Internal Bilingual PortBus Power Connector:Big IDE 4-pin DC Power Connector IntroductionFWB-PCI3204 is a three port OHCI 1.1 Compliant FireWire 800 (IEEE-1394b) to PCI Host Adapter featuring Texas Instruments OHCI 1.1 Compliant FireWire 800 (IEEE-1394b) Single Chip Host Controller. Technical SpecificationsHost Bus:· 33-MHz/32-Bit PCI Interface· 3.3-V and 5-V PCI Signaling EnvironmentsIEEE 1394 Std Support:· Fully Supports Provisions of IEEE P1394b Revision 1.33+ at 1-Gigabit Signaling Rates· Fully Supports Provisions of IEEE 1394a.2000 and 1394.1995 Standard for High Performance Serial Bus· Fully Interoperable With Firewire., i.LINK., and SB1394., Implementation of IEEE Std 13941394 Bus Transfer Rate:Provides three fully backward-compatible, (IEEE Std 1394a-2000 fully compliant) Bilingual IEEE Std 1394b-2002 cable ports at S100/S200/S400/S400B/S800 megabits per second (Mbits/s).IEEE-1394 to PCI Controller· Texas Instruments TSB83AA23· PCI burst transfers and deep FIFOs to tolerate large host latency· Transmit FIFO—5K asynchronous· Transmit FIFO—2K isochronous· Receive FIFO—2K asynchronous· Receive FIFO—2K isochronousDV and DA Enhancement:· Digital Video and Audio performance enhancements.· Extended resume signaling for compatibility with legacy DV components.Power Management :D0, D1, D2, and D3 power states and PME events per the PCI Bus Power Management Interface SpecificationNumber of ports:· FWB-PCI3204: One External Bilingual Port (with screw lock) + Two Internal Bilingual PortsBus Power Connector:Big IDE 4-pin DC Power Connector









FWB-PCI3202A批发

FWB-PCI3202A

原装台湾IOI凌亮3路1394采集卡FWB-PCI3202A工业相机采集卡1A2口B

相关标签： 1394采集卡,FWB-PCI3202A价格,FWB-PCI3202A批发
